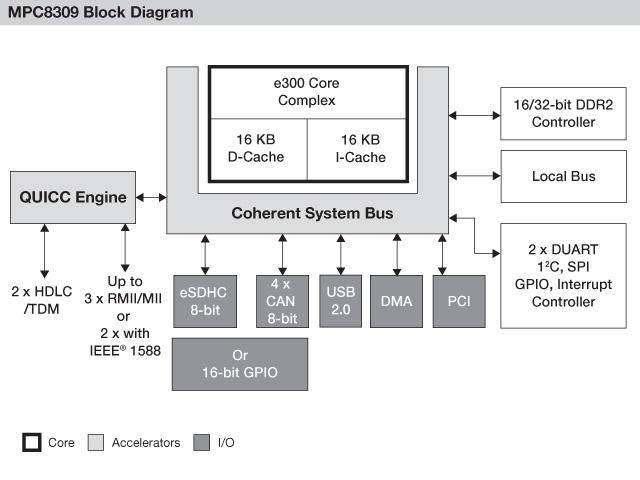

The MPC8309 PowerQUICC II Pro is a member of the MPC830x family of cost-effective network communication processors that meet the requirements of multi-protocol control applications. It provides better CPU performance, additional functionality and faster interfaces than current PowerQUICC II processors while addressing important time to market, price, power consumption and board real estate requirements.
e300 core running upto 400 MHz, DDR2 @ 266 MHz
QUICC Engine running up to 200 MHz
2 x HDLC/TDM
3 x 10/100 or 2 x 10/100 w/IEEE1588v2
USB 2.0
eSDHC (boot from eSDHC support)
4 x CAN
4 x UART
32-bit PCI Interface
Local bus (boot from NOR/NAND flash memory support)
1.03W typical at 333 MHz e300 core/200 MHz QUICC Engine (maximum = 1.37W)
489-pin, 19 mm x 19 mm MAPBGA package
