SFNO系列
所属分类
EMI直通滤波器
目标应用
电源供应器电池工业应用汽车设备通信设备医疗设备
The SFNO range of feedthrough EMI filters combines a tiny M2.5 thread with a 3.5mm (0.138") round body to provide a miniature screw-in filter suitable for very close pitching.A special "screwdriver" type tool is available for insertion into a panel.

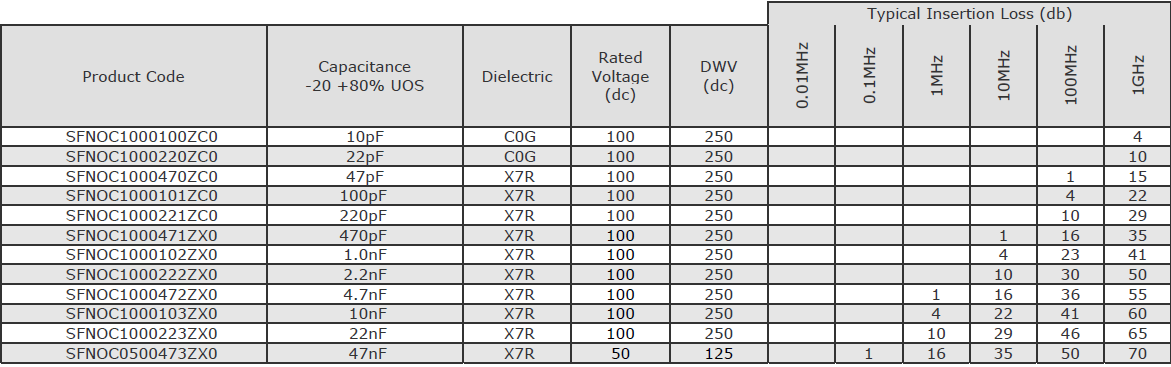

Available in 'C' configuration, the capacitance range is from 10pF to 47nF utilising C0G or X7R dielectric material.Working voltage is either 50Vdc or 100Vdc.
Electrical Configuration C Filters
Capacitance Measurement At 1000hr point
Current Rating 10A
Temperature Rating -55°C to 125°C
