The PAM8012 is a 2.0W mono filterless class-D amplifier with high PSRR and differential input that reduce noise.
Features like 90% efficiency and small PCB area make the PAM8012 Class-D amplifier ideal for cellular handsets. The filterless architecture requires no external output filter, fewer external components, less PCB area and lower system costs, and simplifies application design.
The PAM8012 features anti-saturation function which detect output signal clip due to the over input level and keep the output non-saturation automatically to get the excellent sound quality.
The maximum output power without clip can be set by one resistor at PL pin that to prevent the speaker to be damaged.
The PAM8012 features short circuit protection and over temperature protection.

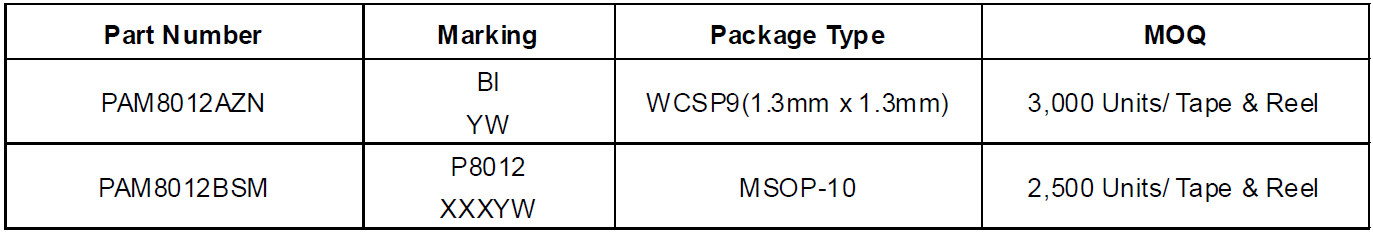

The PAM8012 is available in tiny WCSP9 (1.3mmx 1.3mm) and MSOP-10 packages.
1.0W/2.0W@<1% THD Output with a 8 4 Load at 5V Supply
Maximum Output Power Can Be Set by One External Resistor
Minimized ON/OFF Pop Noise
Superior Low Noise
High PSRR
Supply Voltage from 2.5V to 5.5 V
Auto Recovering Short Circuit Protection
Over Temperature Protection
9 Ball, 1.3mm x 1.3mm, 0.4mm Pitch WCSP and MSOP-10 Packages
