The Atmel® AVR® XMEGA D3 is a family of low power, high performance and peripheral rich CMOS 8/16-bit microcontrollers based on the AVR® enhanced RISC architecture. By execug powerful instructions in a single clock cycle, the XMEGA D3 achieves throughputs approaching 1 Million Instructions Per Second (MIPS) per MHz allowing the system designer to optimize power consumption versus processing speed.
The AVR CPU combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction, executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs many times faster than conventional single-accumulator or CISC based microcontrollers.
The XMEGA D3 devices provide the following features: In-System Programmable Flash with Read-While-Write capabilities, Internal EEPROM and SRAM, four-channel Event System, Programmable Multi-level Interrupt Controller, 50 general purpose I/O lines, 16-bit Real Time Counter (RTC), five flexible 16-bit Timer/Counters with compare modes and PWM, three USARTs, two Two-Wire Interface (TWIs), two Serial Peripheral Interfaces (SPIs), one 16-channel 12-bit ADC with optional differential input with programmable gain, two analog comparators with window mode, programmable Watchdog Timer with separate Internal Oscillator, accurate internal oscillators with PLL and prescaler and programmable Brown-Out Detection.
High-performance, Low-power 8/16-bit Atmel® AVR® XMEGATM Microcontroller
Non-volatile Program and Data Memories
[1] 64K - 256K Bytes of In-System Self-Programmable Flash
[2] 4K - 8K Bytes Boot Code Section with Independent Lock Bits
[3] 2K - 4K Bytes EEPROM
[4] 4K - 16K Bytes Internal SRAM
Peripheral Features
[1] Four-channel Event System
[2] Five 16-bit Timer/Counters,
[3] Three USARTs
[4] Two Two-Wire Interfaces with dual address match(I2C and SMBus compatible)
[5] Two SPI (Serial Peripheral Interfaces)
[6] 16-bit Real Time Counter with Separate Oscillator
[7] One Sixteen-channel, 12-bit, 200ksps Analog to Digital Converter
[8] Two Analog Comparators with Window compare function
[9] External Interrupts on all General Purpose I/O pins
[10] Programmable Watchdog Timer with Separate On-chip Ultra Low Power Oscillator
Special Microcontroller Features
[1] Power-on Reset and Programmable Brown-out Detection
[2] Internal and External Clock Options with PLL
[3] Programmable Multi-level Interrupt Controller
[4] Sleep Modes: Idle, Power-down, Standby, Power-save, Extended Standby
[5] Advanced Programming, Test and Debugging Interface
I/O and Packages
[1] 50 Programmable I/O Lines
[2] 64-lead TQFP
[3] 64-pad QFN
Operating Voltage：1.6 – 3.6V

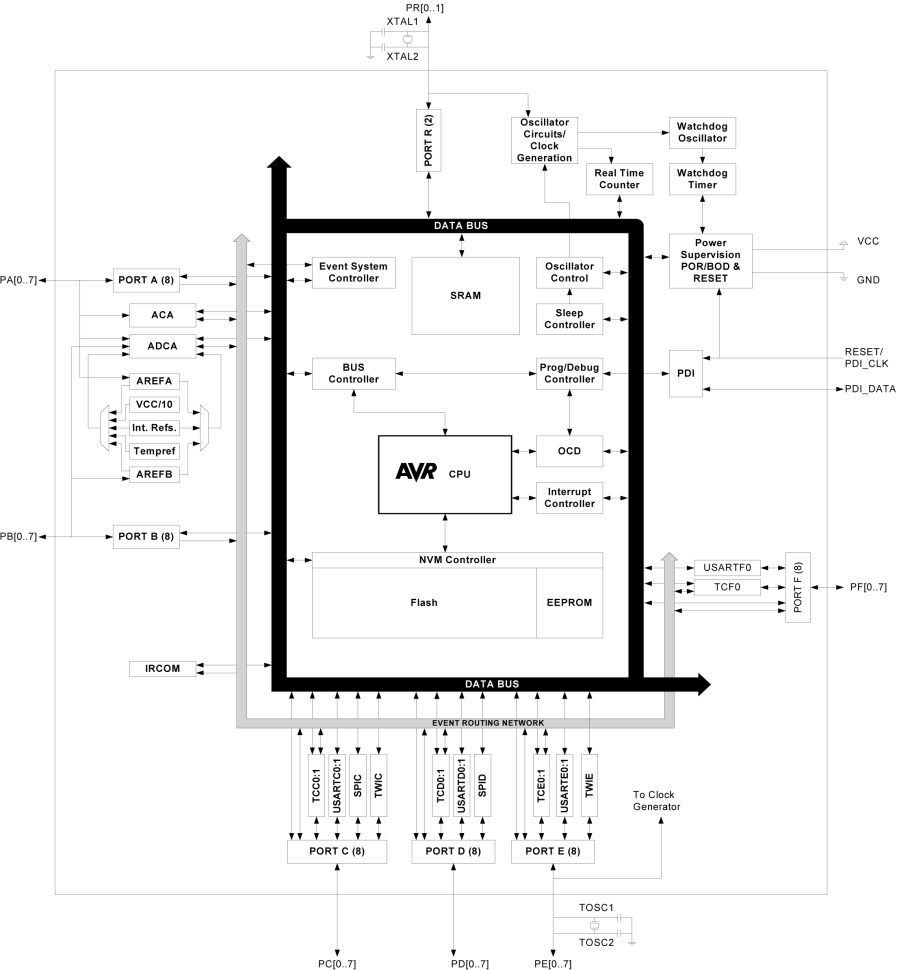

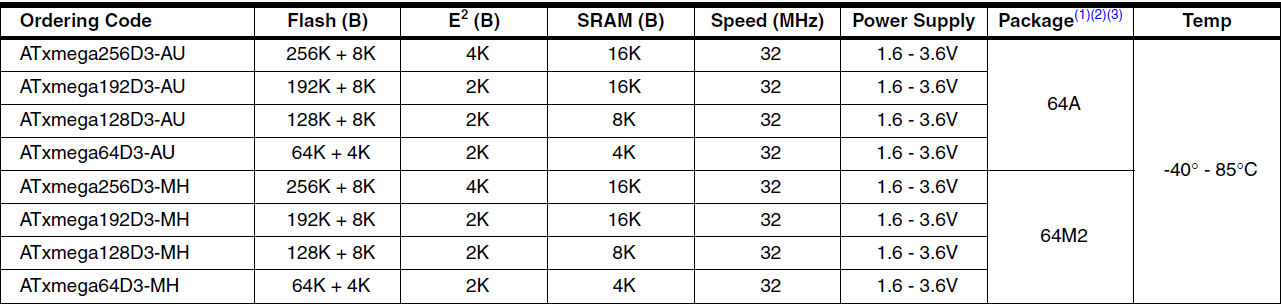

Speed performance
