The PAM8303C is a 3W mono filterless class-D amplifier with high PSRR and differential input that eliminate noise and RF rectification.
Features like 90% efficiency and small PCB area make the PAM8303C class-D amplifier ideal for cellular handsets. The filterless architecture requires no external output filter, fewer external components, less PCB area and lower system costs, and simplifies application design.
The PAM8303C features short circuit protection and thermal shutdown.

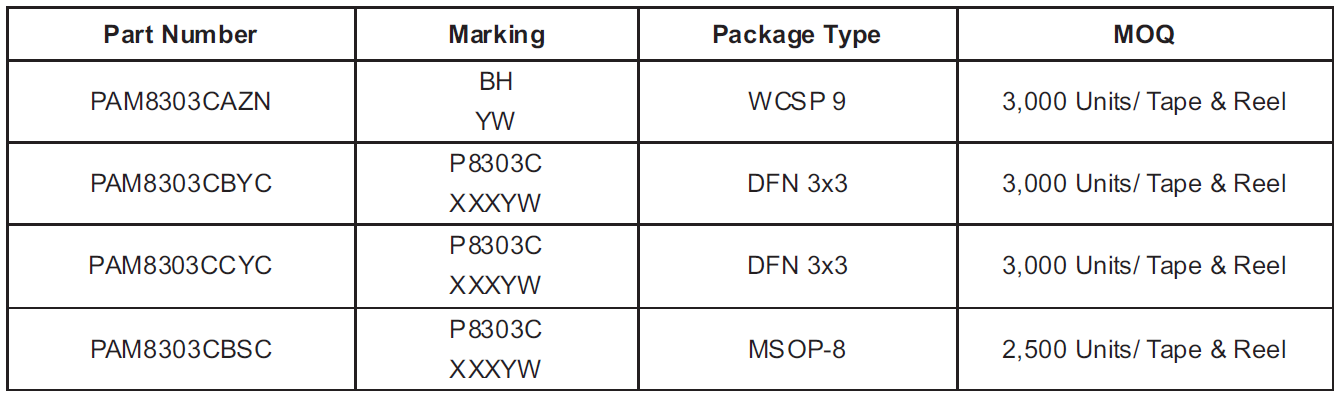

The PAM8303C is available in 9-ball WCSP,MSOP-8 and DFN 3x3 8-pin packages.
Ultra Low EMI, -20dB Better Than FCC Class-B @ 300MHz
High Efficiency up to 90% @1W with an 8Ω Speaker
Shutdown Current <1 A
3W@10% THD Output with a 4Ω Load at 5V Supply
Demanding Few External Components
Superior Low Noise without Input
Supply Voltage from 2.8V to 5.5 V
Short Circuit Protection
Thermal Shutdown
Available in Space Saving Packages:1.45mmx1.45mm WCSP9, MSOP-8, DFN 3x3
Pb-Free Package
