SFSU系列
所属分类
EMI直通滤波器
目标应用
电源供应器电池工业应用汽车设备通信设备医疗设备
The SFSU feedthrough EMI filters are designed for soldering direct to a chassis or panel, and are suitable for hole diameters of 5.8mm (0.228"). Featuring a metal body and epoxy encapsulation, they offer superior filtering performance in a robust package.

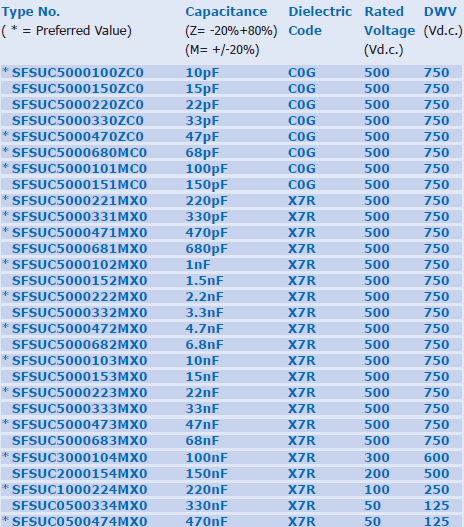

The range provides feedthrough capacitor filtering to high frequencies, with capacitance values from 10pF to 470nF, utilising C0G or X7R dielectric material. Working voltages are from 50Vdc to 500Vdc.
Electrical Configuration C Filters
Capacitance Measurement At 1000hr point
Current Rating 10A
Temperature Rating -55°C to 125°C
