TDK's inductors come in two types: the multilayer type and the wire-wound type. The multilayer type provides high inductance and high Q characteristics with a reduced size thanks to our unique multilayer board processing technologies. The wire-wound type provides low Rdc thanks to its high-efficiency closed magnetic circuit design using high µ ferrite particles, achieving low power consumption. The lineup offers a wide range of product variety to ensure optimum selection according to the intended use such as the frequency level, signal, or power supply type as well as the required characteristics..

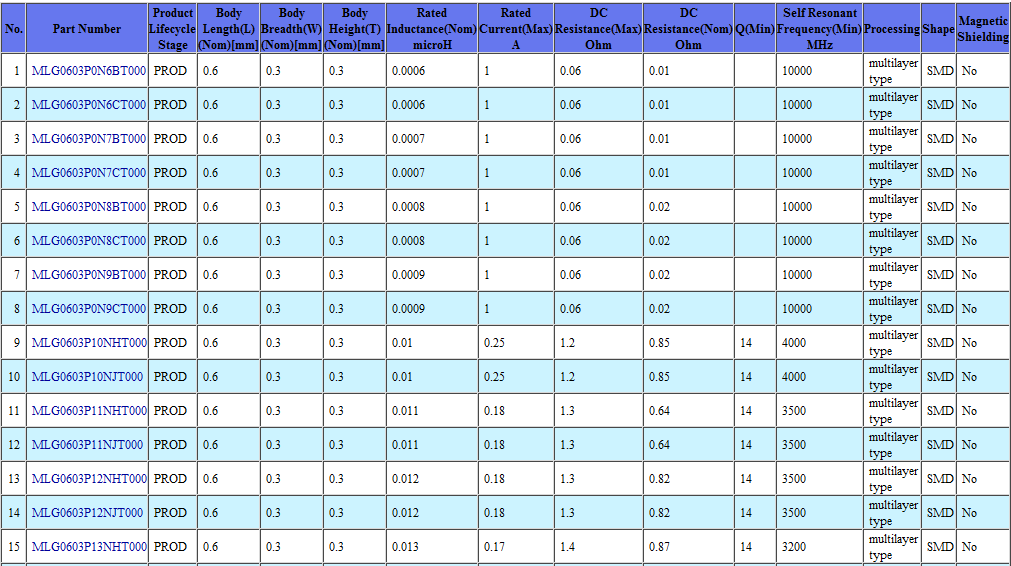

It serializes a product of inductance 0.6 to120nH.
By the most suitable design, Q is higher than competing in a conventional product MLG0603S type. In particular, Q in more than 800MHz largely improved.
Advanced monolithic structure is formed using a multilayering and sintering process with ceramic and conductive materials for high-frequency.
The products contain no lead and also support lead-free soldering.
It is a product conforming to RoHS directive.
