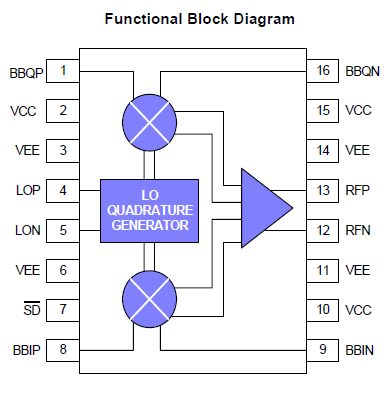

The Sirenza Microdevices’ STQ-1016 is a direct quadrature modulator targeted for use in a wide range of communications systems, including cellular/PCS, GSM, CDMA, TETRA, and ISM datacom. This device features a wide 250 - 1000 MHz operating frequency band, excellent carrier and sideband suppression, and a low broadband noise floor.
The STQ-1016 uses silicon germanium (SiGe) device technology and delivers a typical output power of -9 dBm with greater than 60dB IM3 suppression. A digital input shut-down feature is included that, when enabled, attenuates the output by 60dB. The device is packaged in an industry standard 16 pin TSSOP with exposed paddle for superb RF and thermal ground.
The matte tin finish on Sirenza’s lead-free package utilizes a post annealing process to mitigate tin whisker formation and is RoHS compliant per EU directive 2002/95. This package is also manufactured with green molding compounds that contain no antimony trioxide nor halogenated fire retardants.
Available in Lead Free, RoHS compliant, and Green packaging
Excellent carrier feedthrough, -38 dBm constant over output power
Output P1dB +5dBm
Very low noise floor, -154 dBm/Hz typical
Wide baseband input, DC - 500 MHz
Superb phase accuracy and amplitude balance, ±0.5 deg./±0.2 dB
Low LO drive requirement, -5 dBm
