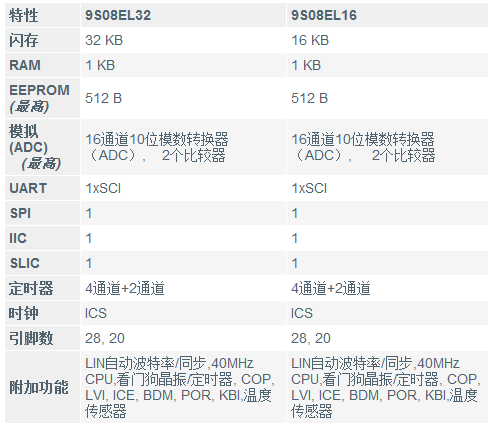

S08EL and S08SL 8-bit microcontrollers with embedded Slave LIN Interface Controller (SLIC) and EEPROM help to increase LIN slave performance and reduce development time. Freescale Semiconductor’s 8-bit EL and SL families of microcontrollers (MCUs) are designed for LIN slave and general market applications. The EL family is positioned as higher end, offering higher memory and more peripherals, while the SL family is intended for more cost-sensitive applications.

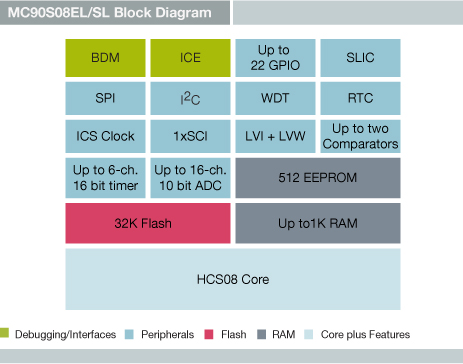

8-Bit S08 Central Processing Unit (CPU): Up to 20 MHz internal bus
On-Chip Memory: Up to 32K flash / Up to 512 Bytes EEPROM/Up to 1K RAM
Two very low-power stop modes
Oscillator (XOSC)
Internal Clock Source (ICS)
ADC—Up to 16-channel, 10-bit resolution
SCI and RTC
22 general purpose input/output (GPIO)s
