PE43204
所属分类
衰减器
目标应用
基站固定无线微波宽带电信军事测试仪表光学设备

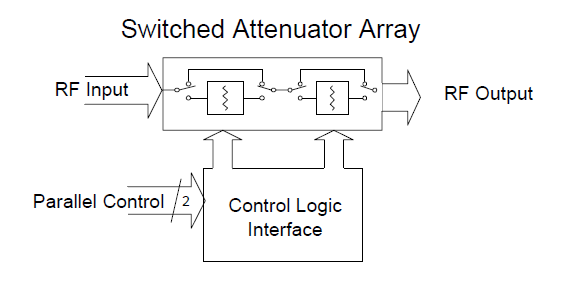

The PE43204 is a 50Ω, HaRP-enhanced, high linearity, 2-bit RF Digital Step Attenuator (DSA) covering an 18 dB attenuation range in 6 dB steps. With a parallel control interface, it maintains high attenuation accuracy, fast switching speed, low insertion loss and low power consumption. This next generation Peregrine DSA is available in a 3x3 mm 12- lead QFN footprint.
HaRP-enhanced UltraCMOSTM device
Fast switching speed: Typical 26ns
High linearity: Typical +61dBm IP3
Small α-Error
Best in class 2000V HBM ESD tolerance
Attenuation: 6,12 and 18dB states
Parallel control
CMOS Compatible
Packaged in a 12 lead 3*3*0.85mm QFN
