RF2850
所属分类
RF调制器
目标应用
通用移动通信系统的基站码分多址基站GSM-EDGE/EGSM基站无线局域网和无线本地环路系统正交调幅调制

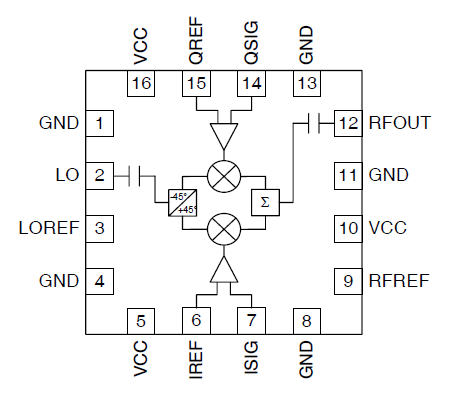

The RF2850 is a direct quadrature modulator for use in base stations and other communications systems. RF2850 supports PCS, GSM, EDGE, CDMA2000, and UMTS standards. This device features a narrow-band operation at 1700MHz to 2500MHz with excellent carrier and sideband suppression and ultra low noise floor. The device is manufactured on an advanced GaAs HBT process. The RF2850 operates from a single 5V supply and is packaged in a low cost 4mmx4mm 16-pin leadless package.
Typical Carrier Suppression>40dBc
Typical Sideband Suppression>40dBc
Noise Floor better than -158dBm/Hz
Single 5V Power Supply
