TDK's inductors come in two types: the multilayer type and the wire-wound type. The multilayer type provides high inductance and high Q characteristics with a reduced size thanks to our unique multilayer board processing technologies. The wire-wound type provides low Rdc thanks to its high-efficiency closed magnetic circuit design using high µ ferrite particles, achieving low power consumption. The lineup offers a wide range of product variety to ensure optimum selection according to the intended use such as the frequency level, signal, or power supply type as well as the required characteristics..

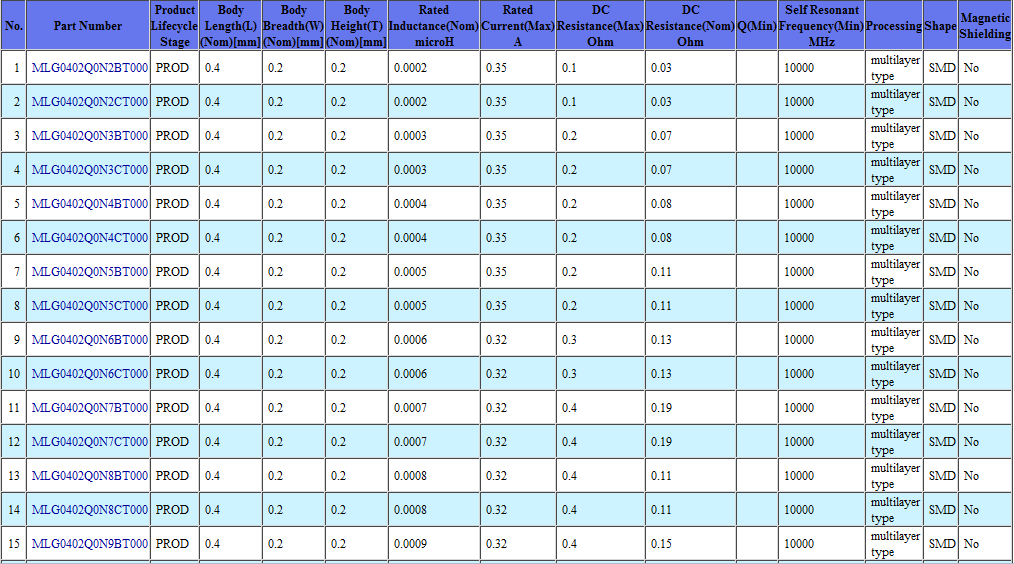

• Inductance values are supported from 0.2 to 15nH.
• Compared to our existing 0603 product, this series has a 30% smaller cubic ratio and 45% smaller effective area, making it the optimal product for fine-pitch circuits.
• Guaranteed operating temperature range: –55 to +125°C
• The products contain no lead and also support lead-free soldering.
• It is a product conforming to RoHS directive.
