SFAJ系列
所属分类
EMI直通滤波器
目标应用
电源供应器电池工业应用汽车设备通信设备医疗设备
The SFAJ range of feedthrough EMI filters combines an M3 thread with a 4.0mm (0.157") hexagonal head, available with or without nuts and washers.

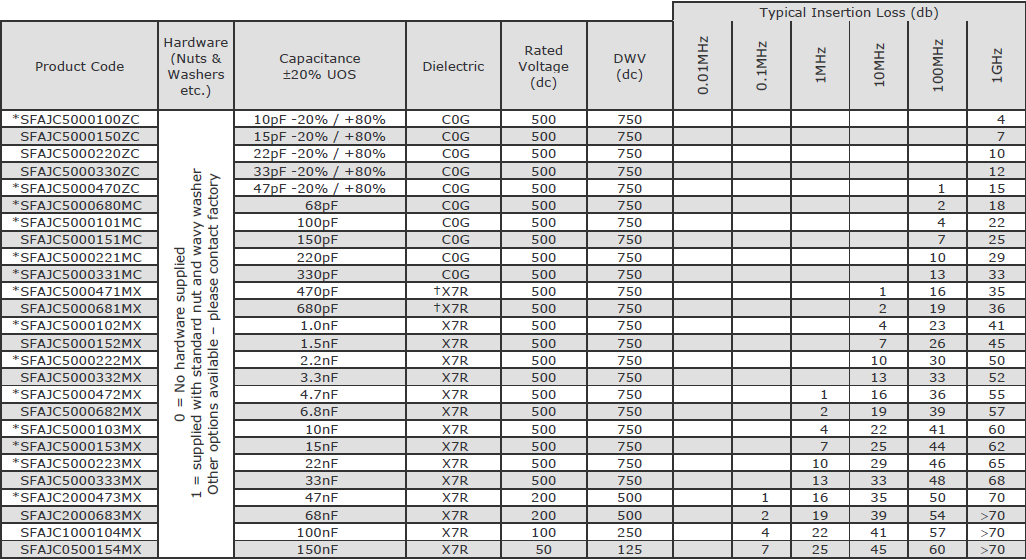

Available in 'C' and L-C configurations, the capacitance range is from 10pF to 150nF, utilising C0G or X7R dielectric material.Working voltages range from 50Vdc to 500Vdc.
Electrical Configuration C Filters
Capacitance Measurement At 1000hr point
Current Rating 10A
Insulation Resistance(IR)：100GΩ to 1000GΩ
Temperature Rating -55°C to 125°C
